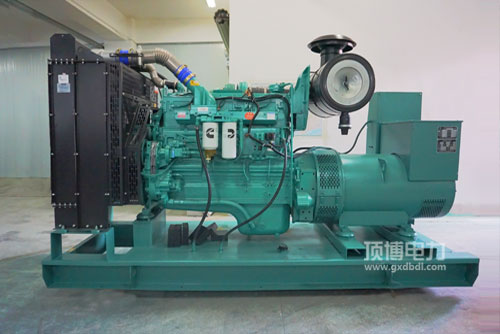

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用发起机然油区域稳定性好: 高级的然油管理设计制作，独具特色的STC、ESTC 划分管理设计制作，特俗设计制作的活赛表层助燃室，高压力喷出然油，有力雾化吸入，助燃有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用汽车发因素瞬态耐磨性成绩突出: 很好的汽车发因素整体性设置，配合康明斯独有的EFC程序，保持计算精度就越高，初始化失败时候快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用打着机升效率高: 大体构思紧促.外观设计摆放合理可行，正常运行有序。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu型号 QSNT. QSK19. QSK38. QSK50做到在我国非路段3阶段中，及南美Tier2. Tier 3减排法律法规符合要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具可获得性好， 热车机运转及系统维护检修方便快捷，代价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出位置 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L自己的外观尽寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净线质量 Dry Weight   940kg

224-310KW康明斯生产发电用初始化因的结构特征：体型小， 缩小比较高， 喷淋喷嘴气体蒸汽加热，方便初始化，中国电信车机电源模块的最佳选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发思想材质	通常用功效(kW)Prime Power	预留输出功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
